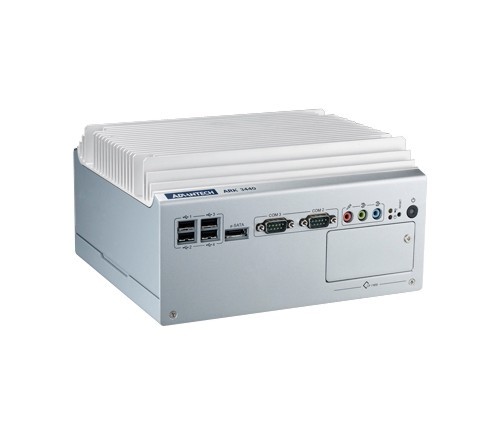

ARK-3440 High performance Intel Core i7 Fanless Computer w/ Expansion Slots

Scos din productie

• Built with Intel^® Core™ i7 2.53 GHz processor
• 2GB dual channel DDR3 memory
• Supports HDMI and DVI-I for multi-display and wide screen support with high resolution
• 1 x PCI and 1 x PCIe slot expansion
• Supports 2 x Gigabit Ethernet, 6 x USB 2.0 and 3 x COM ports (RS-485 with autoflow control)
• Two internal 2.5" SATA HDD drive bays
• Support for 1 x eSATA and CompactFlash
• RAID 1 Capable

Processor	Intel® Core i7
Chipset	Intel® QM57 chipset
Memory	4 GB DDR3 1066/1333 MHz
LVDS	Optional
DVI	DVI 1.0
Expansion	1 Slot PCI and 1 Slot PCIe 2 Slot PCIe x1 (optional); 2 Slot PCI (optional); 1 Slot PCIe x4 (optional) 2 x mini PCIe
Audio	Line-in Spkr-out Mic-in
Ethernet	2 x 10/100/1000 Mbps Ethernet controller
I/O Ports	6 x USB 2.0 2 x RS-232 1 x RS-232/422/485 with autoflow control
Power Supply	Power Consumption: Typical 38W, Max: 47.94W Input Voltage: 9 VDC ~ 34 VDC
Environment	Operation Temperature： ‧0 ~ 50°C operating temperature (with extend temperature peripherals CF) ‧0 ~ 45°C operating temperature (with HDD) Humidity： ‧95% @ 40°C (non-condensing) Vibration： ‧5Grms (with CF) ‧1Grms (with HDD) Shock： ‧50G (with CF) ‧20G (with HDD)





Pentru alte configuratii va rugam cereti oferta!



Data sheet (PDF): ARK-3440-7S50
