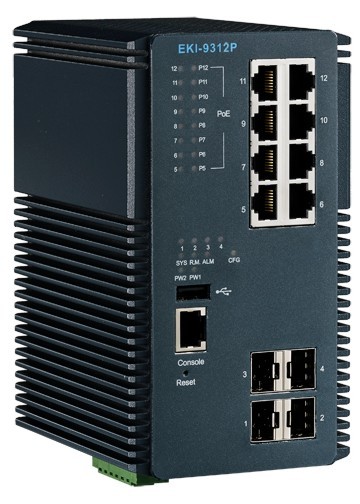

EKI-9312P 12 Port Managed Gigabit Switch with PoE/PoE+

• All Gigabit connections support dual ring protection and non-blocking traffic forwarding
• X-Ring+: recovery time within 10ms for 250 node connections
• IEEE 802.3at PoE+ to supply 30W power
• IEEE 802.3af PoE to supply 15.4 power
• IEEE 802.3af/802.3at per port with system PoE power management
• Dual power input, dual image for system reliability
• Operating temperature: -40 ~ 75° C

---

Datasheet (PDF): EKI-9312P
