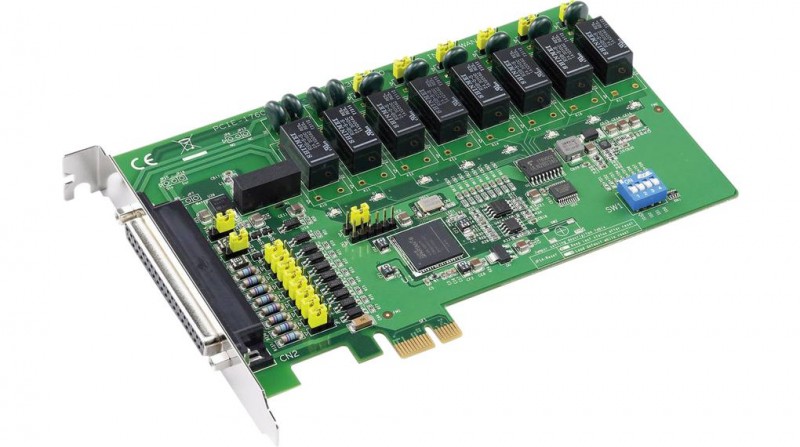

PCIE-1760, 8 Channel Relay & 8 Channel IDI Universal PCIE Card

• 8 opto-isolated digital input channels
• 8 relay actuator output channels
• 2 opto-isolated PWM outputs
• LED indicators to show activated relays
• Jumper-selectable dry contact/wet contact input signals
• Up event counters for DI
• Programmable digital filter function for DI
• Pattern match interrupt function for DI
• "Change of state" interrupt function for DI

---

Data sheet (pdf): PCIE-1760
