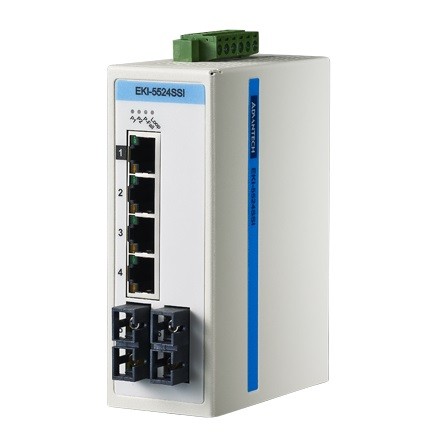

ProView 4-Port 10/100M +2 Single Mode SC - Unmanaged Ind. Switch

1.       4-port 10/100M +2 Single Mode Industrial Ethernet Switch supporting Modbus/TCP and SNMP

2.       2x Single Mode Fiber SC Type: Up to 2 km

Communicates with SCADA software via Modbus/TCP

3.       Communicates with NMS (Networking management system) via SNMP

4.       Port-based QoS for deterministic data transmission

5.       8.4~52.8 V DC wide-range power input

6.       EMS level 3 protection for extreme outdoor environments

7.       IEEE 802.3az Energy Efficient Ethernet (EEE)

8.       Jumbo Frame Support (Up to 9,216 Bytes)

9.       Supports redundant 12~48V DC power input, P-Fail relay and Loop detection

---

Datasheet (pdf.): EKI-5524SS
