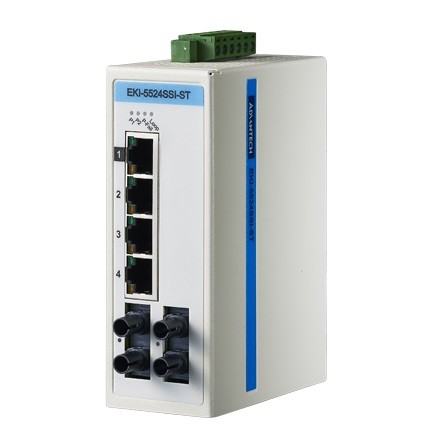

ProView 4-Port 10/100M +2 Single Mode ST - Unmanaged Ind. Switch

4-port 10/100M +2 Single Mode Industrial Ethernet Switch supporting Modbus/TCP and SNMP, featuring -40~75℃ Extreme Temp support

2x Single Mode Fiber ST Type: Up to 2 km

Communicates with SCADA software via Modbus/TCP

Communicates with NMS (Networking management system) via SNMP

Port-based QoS for deterministic data transmission

8.4~52.8 V DC wide-range power input

EMS level 3 protection for extreme outdoor environments

IEEE 802.3az Energy Efficient Ethernet (EEE)

Jumbo Frame Support (Up to 9,216 Bytes)

Supports redundant 12~48V DC power input, P-Fail relay and Loop detection

---

Datasheet (pdf.): EKI-5524SSI-ST
