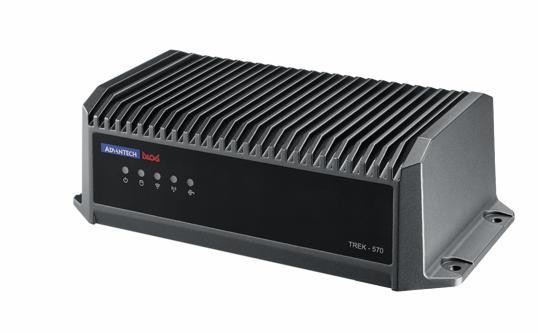

TREK-570 Compact In-vehicle Computing Box for Fleet Management

• Intel Atom E3826 SOC inside
• One-cable-connection to pair with TREK in-vehicle smart display (TREK-303/306)
• Real time rear view monitoring
• Dual independent display/audio output for both driver and passenger for IVI and digital signage application
• Vehicle diagnostic interface with configurable protocols support: CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587)
• Built-in GNSS, WLAN, Bluetooth and WWAN (with dual SIM cards) modules
• Intelligent vehicle power management: ignition on/off delay, wake up event controls and system health monitoring and diagnostic
• Wide working temperature (-30 ~ 70° C), 12/24V Car power system compliant (ISO 7637-2) and Anti-shock/vibration (MIL-STD-810G & 5M3)

---

Datasheet(PDF): TREK-570
