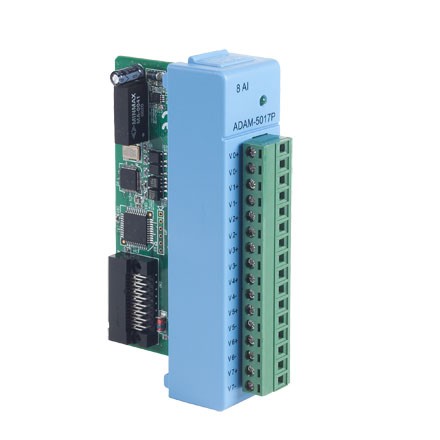

ADAM-5017P, 8-ch Analog Input Module, Independent Input

• High Common Mode: 200 VDC
• Over Voltage Protection: ±60 VDC
• Built-in TVS/ESD Protection
• Isolation Voltage: 3,000 VDC
• Channels: 8 differential and independent configuration channels
• Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
• CMR @ 50/60 Hz: 92 dB min.
• Input Impedance: Voltage: 20 M, Current: 120Ω (Build-in 120Ω. register for Current Input) for Current
• lnput Type: mV, V (supports uni-polar and bipolar), mA
• Sampling Rate: 10 samples/sec

---

Data sheet (pdf): ADAM-5017P
